Product Specification:

Application:	All Metal Material	Cutting Thickness:	SS Upto 12mm, MS
Laser Type:	Imported Original Fiber Laser	Product Name:	Steel Fiber Laser Cutting Machine 60m/Min
Min.line Width:	0.1mm	Control Software:	Cypcut
Graphic Format Supported:	AI, BMP, DST, DWG, DXF, DXP, LAS, PLT	Brand Name:	TAIYI LASER
Repeating Accuracy:	+/-0.03mm	Operating Temperature:	0°C-45°C
Cooling Mode:	Water Cooling	Laser Source:	IPG/Nlight/Raycus/Max
Voltage:	AC380V±10% 50HZ(60HZ)	Cutting Area:	3000x1500mm,4000*2000mm Customized

Product Description:

1. .The machine enjoys a good performance with high cutting speed, high efficiency, safety and stability.
2. The laser spot enjoys good quality. And the machine distorts just slightly. Besides, the material can have asmooth and nice appearance
3. After tempering treatment, the frame with high rigidity is of high vibration-absorbed performance. The frame with gantry structure is one-step processed in large CNC gantry machining center. With optimized structure, the machine enjoys stability and high accuracy which can be controlled within 0.01mm/m.
4. Imported servo motor, planetary reducer, and sophisticated direction drive mechanism ensure steadiness and accuracy.
5. Intuitive HMI with many practical functions is easy to operate.
6. Imported bevel gear, helical rack, linear guide rail ensure highly precise running direction.
7. The auto-height & anti-collision system automatically adjusts the hermetic cutting head at the proper height to cut at a fixed distance.
8. The power supply of the machine is designed with automatic safety protection, and features fault alarm.

Specification

Model	TY-3015DD
Laser source medium	Fiber
Cutting range (L * W)	3000 mm × 15000 mm
Z axle stroke	250 mm
Max. positioning speed	120 m/min
X,Y axle Max. accelerate speed	1.0G
Cooling form	Water cooling
Laser wavelength	1070nm
Output power of laser source	500W/1000W / 1500W / 2000W 2500W / 3000W / 4000W (Optional)
Min. cutting gap	≤ 0.1 mm
Positioning accuracy of X, Y and Z axles	± 0.03 mm
Repeated positioning accuracy of X, Y and Z axles	± 0.01 mm
Thickness of cutting material (according to material)	0.2 - 25 mm
Driver model	Imported servo motor
Power requirement	380V, 50/60 Hz
Working temperature	0-45℃
Continuous working time	24 Hours
Machine weight	About 12000 Kgs
Total protection level of power supply	IP54

Warrenty

1. 1Year for the whole machine(Man-made Damage is negotiated.)
2. Laser source 2 Years warranty
3. Lifelong maintenance and spare parts supply
4. Free training for operation staffs. (engineer can go abroad is negotiated.)

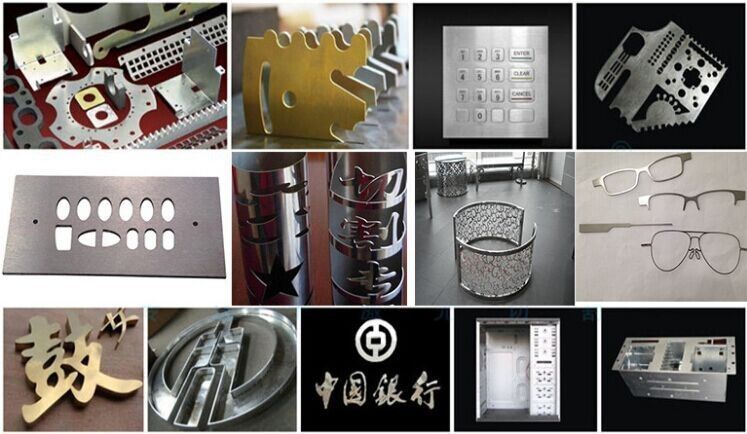

Sample Images:
